Turning Holder Rig Clamp CCLNR 2525M 164 by USA Sandvik Coromant Indexable Toolholders
sandvik coromant usa indexable toolholders
|
USA product ID: CCLNR 2525M 16-4. Turning tool holder, rigid clamp, cutting direction right, rake 6 deg., rake angle 6 deg., shank metric, shank width 25mm, shank height 25mm, insert shape 80 deg. Diamond, lead angle 5, width offset cng 553, height offset 1.260 in, clamp 5412028031, shim 532223403, shim screw 551302007, torx wrench 568004314, ansi number cclnr 2525m 164, for use with cng 553. High quality indexable toolholders by Sandvik Coromant, buy online with confidence at best discount price and fast shipping to USA. Distributor product SKU: G6707233.
 Indicative Price: USD 194.55
(for Actual Current Price, possibly lower,
please click below)
More Info & Supplier : click here
For more USA specification industrial & professional tools : click here
|
Try Search on this site - find exactly what you need! Click below:
|
|
|
|
 |
|
|
|
Boring Bar MH24 MCLNL4 CFT by USA Ultra Dex Indexable Toolholders
USD 213.58
(Indicative price - actual current price possibly lower)
Indexable Toolholders USA Supply
USA product ID: MH24 MCLNL4-CFT. Boring bar, turning, ansi number mh24 mclnl4-cft, style chatter-free, mounting style clamp and lock pin, cutting edge type -5 degrees , rake negative, lead angle -5 degrees , left/right hand left hand, min. Bore 1.760 in., shank material steel, bar dia. 1.500 in., overall length 1.625 in., insert shape 80 degrees diamond, inscribed circle 1/2 in., insert thickness 0.1875 in., for use with cnmg 432. High quality indexable toolholders by Ultra-Dex, buy online with confidence at best discount price and fast shipping to USA. Distributor product SKU: G9233156.
More Details : click here
SEARCH this site : click here
|
|
|

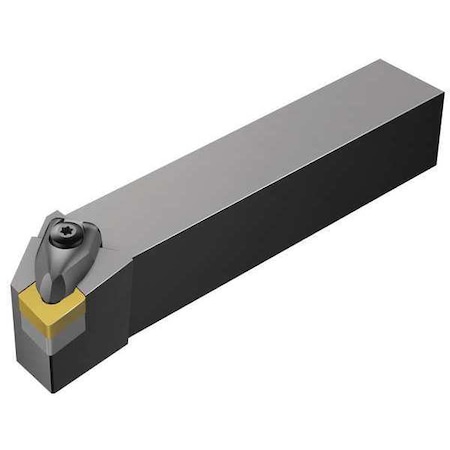

Turning Holder Rig Clamp DCLNL 3225P 122 by USA Sandvik Coromant Indexable Toolholders
USD 194.55
(Indicative price - actual current price possibly lower)
Indexable Toolholders USA Supply
USA product ID: DCLNL 3225P 12-2. Turning tool holder, rigid clamp, cutting direction left, rake 6 deg., rake angle 6 deg., shank metric, shank width 25mm, shank height 32mm, insert shape 80 deg. Diamond, lead angle 5, width offset cngq 452, height offset 1.260 in, clamp 5412028021, shim 532223401, ansi number dclnl 3225p 122, for use with cngq 452. High quality indexable toolholders by Sandvik Coromant, buy online with confidence at best discount price and fast shipping to USA. Distributor product SKU: G6577146.
More Details : click here
SEARCH this site : click here
|
|
|
Boring Bar E04H STUCR1.2 by USA Ultra Dex Indexable Toolholders
USD 157.52
(Indicative price - actual current price possibly lower)
Indexable Toolholders USA Supply
USA product ID: E04H STUCR1.2. Boring bar, turning, ansi number e04h stucr1.2, style coolant-thru, mounting style screw lock, cutting edge type -3 degrees , rake positive, lead angle -3 degrees , left/right hand right hand, min. Bore 0.275 in., shank material carbide, bar dia. 0.250 in., overall length 4.000 in., insert shape triangle, inscribed circle 5/32 in., insert thickness 0.0781 in., for use with tcmt 1.21.20.5. High quality indexable toolholders by Ultra-Dex, buy online with confidence at best discount price and fast shipping to USA. Distributor product SKU: G9229972.
More Details : click here
SEARCH this site : click here
|
|
|
Turning Holder Rig Clamp DCLNL 4040S 12 by USA Sandvik Coromant Indexable Toolholders
USD 229.36
(Indicative price - actual current price possibly lower)
Indexable Toolholders USA Supply
USA product ID: DCLNL 4040S 12. Turning tool holder, rigid clamp, cutting direction left, rake 6 deg., rake angle 6 deg., shank metric, shank width 40mm, shank height 40mm, insert shape 80 deg. Diamond, lead angle 5, width offset cnmg 432, height offset 1.969 in, clamp 5412028021, shim 532223401, ansi number dclnl 4040s 12, for use with cnmg 432. High quality indexable toolholders by Sandvik Coromant, buy online with confidence at best discount price and fast shipping to USA. Distributor product SKU: G6474955.
More Details : click here
SEARCH this site : click here
|
|
|
Boring Bar MH32 SCLCR4 CFT by USA Ultra Dex Indexable Toolholders
USD 229.5
(Indicative price - actual current price possibly lower)
Indexable Toolholders USA Supply
USA product ID: MH32 SCLCR4-CFT. Boring bar, turning, ansi number mh32 sclcr4-cft, style chatter-free, mounting style screw lock, cutting edge type -5 degrees , rake positive, lead angle -5 degrees , left/right hand right hand, min. Bore 2.400 in., shank material steel, bar dia. 2.000 in., overall length 1.625 in., insert shape 80 degrees diamond, inscribed circle 1/2 in., insert thickness 0.1875 in., for use with ccmt 432. High quality indexable toolholders by Ultra-Dex, buy online with confidence at best discount price and fast shipping to USA. Distributor product SKU: G9234197.
More Details : click here
SEARCH this site : click here
|
|
|

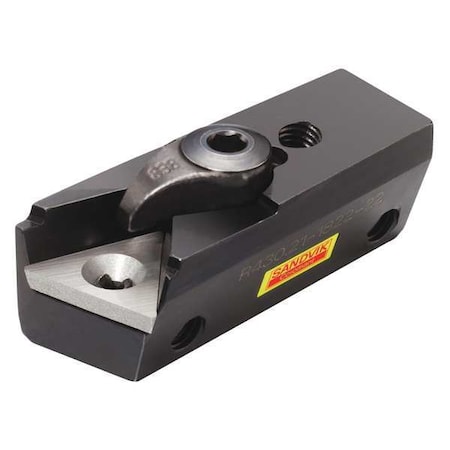

Drilling Cartridge Peripheral Seating by USA Sandvik Coromant Indexable Toolholders
USD 296.79
(Indicative price - actual current price possibly lower)
Indexable Toolholders USA Supply
USA product ID: R430.21-1516-16. Drilling cartridge, peripheral insert seating unit 15 degrees lead, for use with mfr. No. Tpu 32x and mfr. No. 424.9 t-max drill heads, 1 number of inserts required, solid insert style, no lock, rake positive, left/right hand right hand, shank width (in.) 0.574, shank height (in.) 0.657, overall length (in.) 1.801, insert shape triangular, inscribed circle (in.) 0.375, insert thickness (in.) 0.250, clamp 174.9-837-1, clamp screw 3214-010-357. High quality indexable toolholders by Sandvik Coromant, buy online with confidence at best discount price and fast shipping to USA. Distributor product SKU: G8820043.
More Details : click here
SEARCH this site : click here
|
|
|
|
Boring Bar C04H STUCL1.2 172 by USA Ultra Dex Indexable Toolholders
USD 140.62
(Indicative price - actual current price possibly lower)
Indexable Toolholders USA Supply
USA product ID: C04H STUCL1.2-172. Boring bar, turning, ansi number c04h stucl1.2-172, style standard, mounting style screw lock, cutting edge type -3 degrees , rake positive, lead angle -3 degrees , left/right hand left hand, min. Bore 0.312 in., shank material carbide, bar dia. 0.250 in., overall length 4.000 in., insert shape triangle, inscribed circle 5/32 in., insert thickness 0.0781 in., for use with tcmt 1.21.20.5. High quality indexable toolholders by Ultra-Dex, buy online with confidence at best discount price and fast shipping to USA. Distributor product SKU: G9228432.
More Details : click here
SEARCH this site : click here
|
|
|
Internal Boring Bar A08M STFCR 2 B1 by USA Sandvik Coromant Indexable Toolholders
USD 178.13
(Indicative price - actual current price possibly lower)
Indexable Toolholders USA Supply
USA product ID: A08M-STFCR 2-B1. Internal boring bar, turning, coroturn 107, cutting direction right hand, min. Bore 0.598 in, shank inch, material steel, shank dia 0.315 in, overall length 6.00 in, max depth 4x diameter, insert shape triangular, lead angle -1 degrees , inscribe circle 1/4 in, insert screw 5513020-03, width offset 0.580 in, height offset 0.460 in, mounting style screw mounting, torx wrench 5680046-03, for use with tcmt 221. High quality indexable toolholders by Sandvik Coromant, buy online with confidence at best discount price and fast shipping to USA. Distributor product SKU: G6527175.
More Details : click here
SEARCH this site : click here
|
|
|
Internal Boring Bar A24T DSKNR 4 by USA Sandvik Coromant Indexable Toolholders
USD 402.29
(Indicative price - actual current price possibly lower)
Indexable Toolholders USA Supply
USA product ID: A24T-DSKNR 4. Internal boring bar, turning, coroturn rc, cutting direction right hand, min. Bore 1.760 in, shank inch, material steel, shank dia 1.5 in, overall length 12.00 in, max depth 4x diameter, insert shape square, lead angle 15 degrees , inscribe circle 1/2 in, width offset 0.890 in, height offset 1.374 in, mounting style rigid clamp, for use with snmg 432. High quality indexable toolholders by Sandvik Coromant, buy online with confidence at best discount price and fast shipping to USA. Distributor product SKU: G6933351.
More Details : click here
SEARCH this site : click here
|
|
|

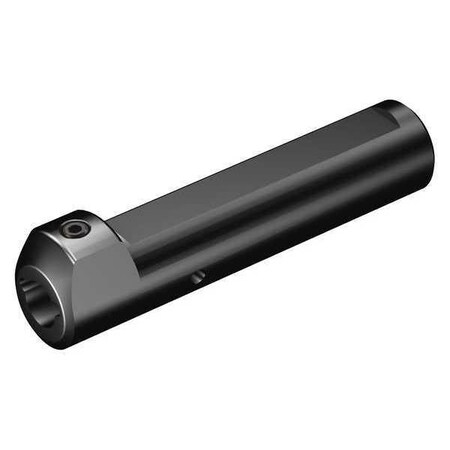

Internal Boring Bar CXS A0750 04 by USA Sandvik Coromant Indexable Toolholders
USD 187.8
(Indicative price - actual current price possibly lower)
Indexable Toolholders USA Supply
USA product ID: CXS-A0750-04. Internal boring bar, turning, coroturn xs, cutting direction neutral, shank inch, material steel, shank dia 0.750 in, overall length 3.54 in, insert shape parallelogram, insert size 04, width offset 0.580 in, height offset 0.709 in, for use with cxs-04. High quality indexable toolholders by Sandvik Coromant, buy online with confidence at best discount price and fast shipping to USA. Distributor product SKU: G7045437.
More Details : click here
SEARCH this site : click here
|
|
|
Internal Boring Bar A16T SCLCR 3 by USA Sandvik Coromant Indexable Toolholders
USD 290.51
(Indicative price - actual current price possibly lower)
Indexable Toolholders USA Supply
USA product ID: A16T-SCLCR 3. Internal boring bar, turning, coroturn 107, cutting direction right hand, min. Bore 1.201 in, shank inch, material steel, shank dia 0.315 in, overall length 12.00 in, max depth 4x diameter, insert shape 80 degrees diamond, lead angle -5 degrees , inscribe circle 3/8 in, width offset 0.640 in, height offset 0.906 in, mounting style screw mounting, for use with ccmt 3(2.5)2. High quality indexable toolholders by Sandvik Coromant, buy online with confidence at best discount price and fast shipping to USA. Distributor product SKU: G7262071.
More Details : click here
SEARCH this site : click here
|
|
|

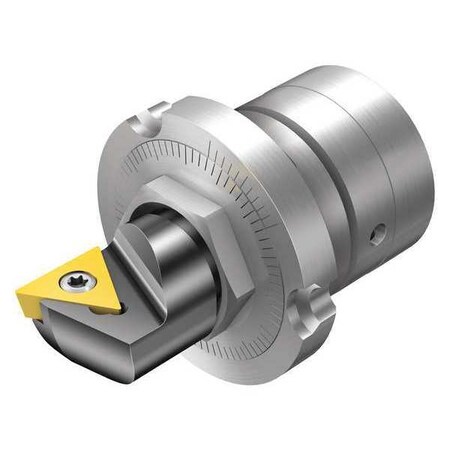

Fine Boring Unit Boring R148C 31 0602 by USA Sandvik Coromant Indexable Toolholders
USD 556.73
(Indicative price - actual current price possibly lower)
Indexable Toolholders USA Supply
USA product ID: R148C-31-0602. T-max p turning tool, style ptgn, negative rake, l, shank cartridge, type a (iso5611), triangular insert shape, inscribed circle 0.5 in, insert thickness 0.1875 in, dimension h1 (in) 0.7874, 0.9843 dimension f1 (in). High quality indexable toolholders by Sandvik Coromant, buy online with confidence at best discount price and fast shipping to USA. Distributor product SKU: G7190592.
More Details : click here
SEARCH this site : click here
|
|
|

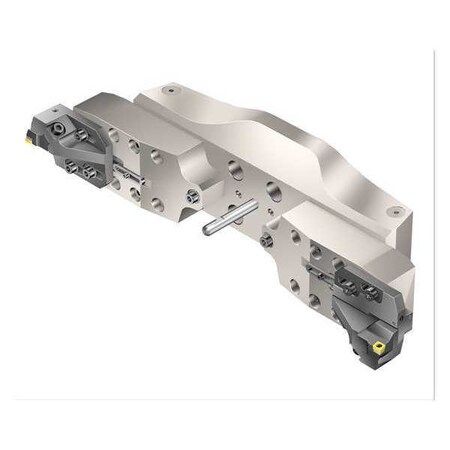

Assembly CoroBore XL 820 1260CN19 by USA Sandvik Coromant Indexable Toolholders
USD 13235.58
(Indicative price - actual current price possibly lower)
Indexable Toolholders USA Supply
USA product ID: 820-1260CN19. Assembly, corobore xl, 820-1260cn19, diameter 1.575 in., 8.583 in. Cutting length, 2 number of inserts required, no lock, rake negative, rake angle (deg.) 0, left/right hand right, insert shape rhombic 80 degrees , inscribed circle (in.) 0.750, insert thickness (in.) 1/4. High quality indexable toolholders by Sandvik Coromant, buy online with confidence at best discount price and fast shipping to USA. Distributor product SKU: G2229221.
More Details : click here
SEARCH this site : click here
|
|
|
|
|
|
